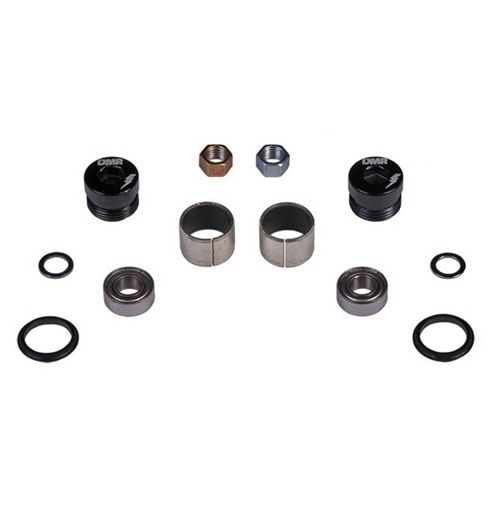

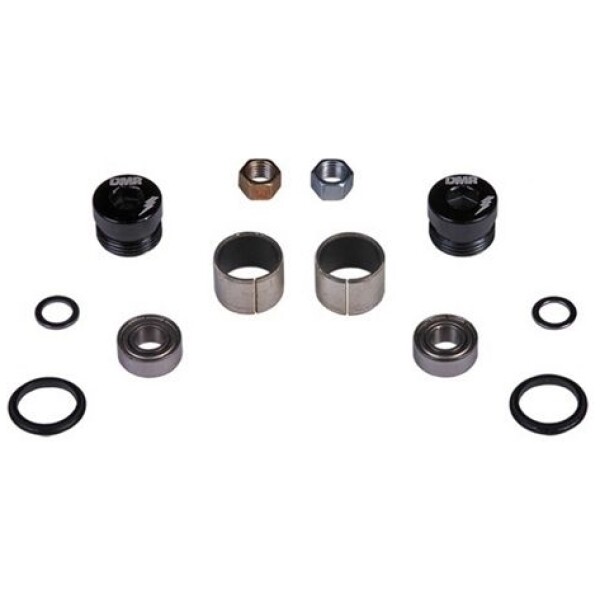

DMR Vault Bearings & Vault Pedal Service Kit includes
2x Sealed bearing number: 686ZZ – 6mm Ø ID (Internal Diameter) 13mm Ø OD (Over All Diameter) 5mm Width
2x Plain bearing (bushing) 12mm Ø ID (Internal Diameter) 14mm Ø OD (Over All Diameter) 12mm Width
Nuts:
1x M6x0.75 5 deep right hand thread (left hand pedal) (to be fitted with a 8mm socket)
1x M6x0.75 5 deep left hand thread (right hand pedal) (to be fitted with a 8mm socket)
2x End cap: M14x1x11
2x Washer: 6mm Ø ID (Internal Diameter) 9mm Ø OD (Over All Diameter) 1mm Width
2x Internal Rubber Seals
